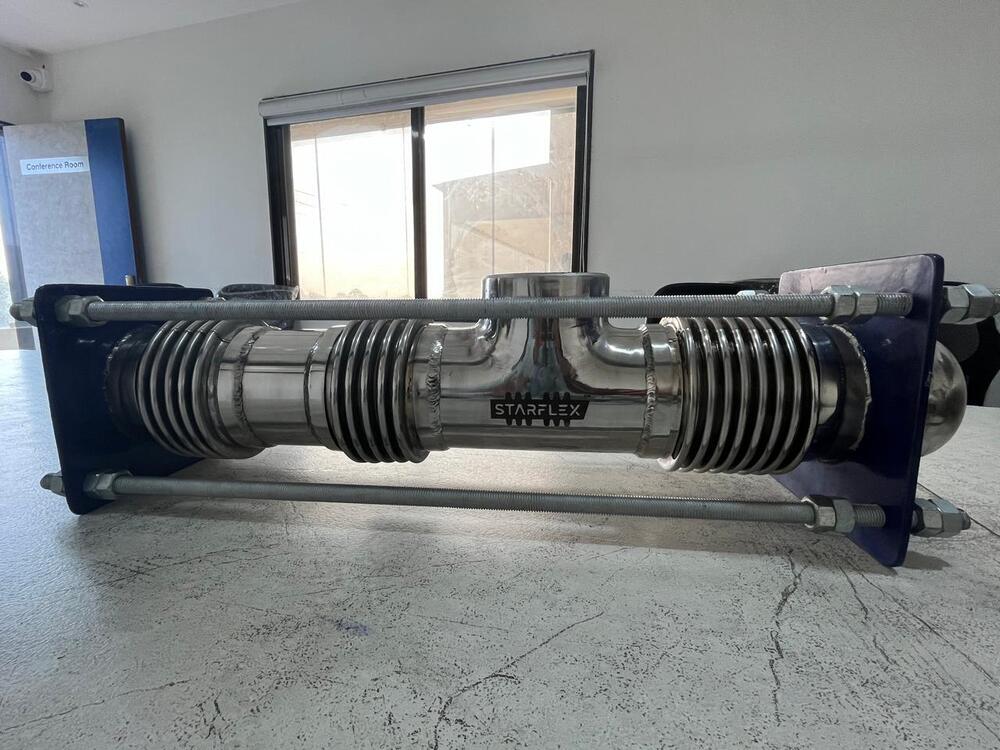

T - Type Pressure Balance Bellows

About T - Type Pressure Balance Bellows

A T-Type Pressure Balance Bellow is a specialized component used primarily in pressure vessels, pipelines, and various industrial applications where the management of pressure fluctuations and thermal expansion is necessary. These bellows are designed to absorb axial, lateral, and angular movements while maintaining a balance between internal and external pressure. The "T-Type" generally refers to the design or shape of the bellows and its ability to handle specific directional forces or provide pressure relief in certain configurations.

Key Features and Functions:

1. Pressure Balancing: The primary function of a T-type pressure balance bellow is to maintain a stable pressure between the inside and outside of the bellows, which is essential in preventing any potential damage to equipment or systems due to fluctuating pressures.

2. Absorption of Movements: The bellows absorb various mechanical movements (axial, lateral, angular) caused by thermal expansion or vibrations in the system, helping to protect other sensitive components in the pipeline or vessel.

3. Durability: They are often made from materials such as stainless steel or other alloys to withstand high-pressure environments and harsh conditions, ensuring long-term reliability.

4. Sealing Function: The bellows provide an effective sealing function, which is crucial in applications like vacuum systems, pumps, reactors, or any process where leaks could lead to loss of efficiency or safety hazards.

5. Design Configurations:

   • T-Type Design: The "T" in the name typically refers to a T-shaped configuration where the bellows may have a specific pressure-relief channel or two distinct sections for balancing pressures within the unit.
   • Flexibility: The design allows for better flexibility in handling pressure imbalances that might occur due to external factors or operational changes.

6. Applications:

   • Pressure Relief Systems: To prevent excess pressure from building up within a system.
   • Expansion Joints: To absorb thermal expansion in pipes or ducts.
   • Heat Exchanger Systems: To manage pressure differences between hot and cold fluids.

Benefits:

• Enhanced Safety: Prevents rupture or damage caused by pressure imbalances.
• Longevity: Extends the life of pipes and equipment by minimizing wear and tear.
• Performance Optimization: Ensures more consistent and stable operation of pressure-dependent systems.

In summary, T-type pressure balance bellows are crucial for applications requiring controlled pressure balancing and movement compensation, often used in critical systems like heat exchangers, pressure vessels, and pipelines.
